WANDA 450-FLAT ESP CABLE

  • DESCRIPTION

    BARE SOLID COPPER CONDUCTOR, EPDM INSULATION, LEAD SHEATH, FIBER TAPE COMPLETELY COVERED THE SHEATH, GALVANIZED STEEL (SS OR MONEL)ARMOR
  • STANDARD

    IEEE1018, API RP11S5, API RP 11S6
  • PACKING

    ALL STEELS REELS, WOODEN COVER OUTSIDE, CABLE LENGTH TO MEET CUSTOMER'S REQUIREMENTS.

CABLE SPECIFICATION AND PARAMETERS


NO.

VOLTAGE RATING(KV)

CONDUCTOR

NOMNAL CONDUCTOR OD

INSULATION OD

LEAD SHEATH OD

ARMOR

MAX CABLE DIMENSION

NOMNAL WEIGHT(APPROXIMATE)

AWG

Mm2

inch

mm

inch

mm

inch

mm

inch

mm

Lbs/ft

Kg/m

1

5KV

5

20

0.20

5.19

0.373

9.48

0.441

11.20

GLA. STEEL TAPE

0.592*1.506

15.0*38.3

1.48

2.2

2

5KV

2

33

0.26

6.54

0.427

10.80

0.494

12.60

GLA. STEEL TAPE

0.646*1.666

16.4*42.3

1.89

2.8

3

5KV

1

42

0.29

7.34

0.458

11.64

0526

13.40

GLA. STEEL TAPE

0.677*1.761

17.2*44.7

2.15

3.2


WANDA 450-FLAT ESP CABLE SPECIFICATION

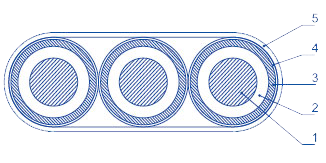

CONSTRUCTION:   FLAT/SOL BARE COPPER/2 AWG/5KV/EPDM/LEAD SHEATH/FIBER TAPE/GALV./450°F※CONDUCTOR CAN BE TINNED OR BARE

1、   CONDUCTOR:   2AWG SOLID BC                                 MAX.   DIA=0.26''     6.54mm

2、   INSULATION:   EPDM, HIGH DIELECRIC STRENGTH, 5KV             MAX.     DIA=0.427''    10.80mm
                                     0.075''MINIMUM AVG WALL THICKNESS
                                     0.067''MINIMUM AVG WALL THICKNESS AT ANY POINT

3、   LEAD SHEATH:   LEAD, FATIGUE RESISTANT, MEETS ASTM ASTM B-29
                                          0.030''MINIMUM AVG WALL THICKNESS
                                          0.024'' MINIMUM AVG WALL THICKNESS AT ANY POINT
                                          MAX. DIAMETER OVER LEAD SHEATH                                  DIA=0.494''        12.60mm

4、   TAPES:   PROTECTIVE FIBER TAPE
                          TO PROTECT THE LEAD SHEATH FROM MECHANICAL ATTACK AND TO
                          PROVIDE ADDITIONAL CONTAINMENT TO THE CABLE PHASES

                           BEDDING TAPE SHALL BE TIGHTLY WRAPPED TO PROTECT LEAD SHEATH
                           DURING THE ARMORING OPERATION. PROVIDES 100% PROTECTION TO
                           THE LEAD SHEATH

5、   ARMOR:   GALVANIZED STEEL ARMOR, 0.02'' THICKNESS
                             MAX. DIAMETER OVER ARMOR                               0.646'' * 1.666''    16.4mm * 42.3mm
                             NOMINAL WEIGHT PER FOOT

TEMPERATURE:   TEMPERATURE RATING 450-LEAD SHEATH              -40℃ TO 232℃
                                                                                                                                    -40℉ TO 450℉

TESTED:   IEEE1018,API RP 11S5, API RP 11S6 AND WANDA SPECIFICATIONS
                    CONDUCTOR RESISTANCE=MAX. 0.566Ω/KM@20℃
                    INSULATION RESISTANCE=899Ω.KM@15.6℃
                    DC TEST(5MIN.@35KV)
                    MAX. DC LEAKAGE=0.100 µAmp/kft/KV
